BK-2650A Spectrum Analizer

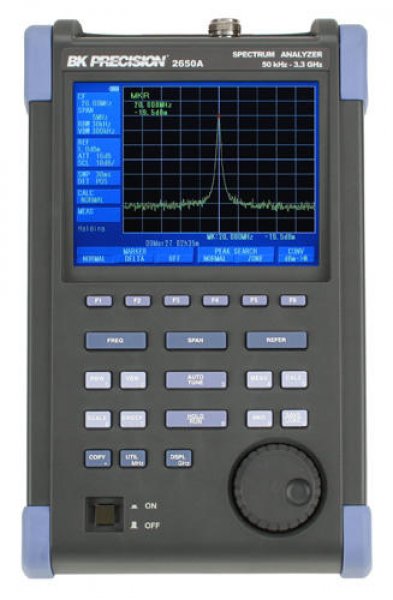

BK Precision 2650A
Handheld 3.3GHz Handheld Spectrum Analyzer

-Installation, maintenance, and trouble shooting of wireless communication systems such as W-CDMA/CDMA, GSM, WLAN and Bluetooth
-Detection of signal interference and undesired emissions
-TV and broadcasting
-Antenna alignment
-Electric field strength measurement with dipole antennas (order M401-M406)
-Magnetic field strength measurement with magnetic field probe (order PR 26M)
-EMI compliance (E & H field measurements with optional accessories)
-Large easy-to-read color display, 640 x 480 resolution
-Convenient USB host port: save screen images and measurement results directly to a USB drive
-DANL (displayed average noise level) of -127 dBm
-Measurement functions: channel/adjacent channel power, occupied bandwidth, electric and magnetic field strength
-Easy operation due to Auto Tuning
-Fast sweep speed, minimum 10 ms, to help locate and identify elusive, transient interference signals

B&K Precision's 2650A is a compact, light weight and cost-effective spectrum analyzer for quick and precise signal investigations, especially away from the bench. At a weight of only 4 pounds (1.8 kg), the 2650A is by far the lightest full-featured spectrum analyzer available, yet it delivers performance and features comparable to a full-size bench spectrum analyzer and can operate up to 4 hours on a single battery. With its ease of use, measurement flexibility and unmatched portability, the 2650A spectrum analyzer is an indispensible tool for engineers and technicians who conduct field measurements in the 50 kHz to 3.3 GHz range.


Specifications :
Frequency range 50 kHz to 3.3 GHz
Center frequency Resolution 20 kHz (Set with rotary encoder, numeric or function key)
Accuracy

T: sweep time (s) within ±(30 + 20T)kHz ± 1 dot@ freq span: 200 kHz to 10 MHz, RBW 3 kHz, 23±5°C
within ± (60+300T) kHz±1dot
@freq span: 20 MHz to max. frequency (3.3 GHz or 8.5 GHz),
RBW 100 kHz, 23±5°C
RBW Frequency Error within ±4% of RBW @RBW: 3 kHz, 10 kHz, 30 kHz
within 20% of RBW @ RBW: 100 kHz, 300 kHz
within 10% of RBW @ RBW: 1 MHz, 3 MHz
Frequency span Range 0Hz (zero span), 200kHz to 2GHz (1-2-5 step) and 3.3 GHz
Accuracy within ±3% ±20TkHz ±1 dot@ freq span within ±3% ±1dot @ sweep time of 0.3s, 23±5 °C
Display Resolution
# of points per trace F501dots on LCD screen, 1001dots readout via PC (501 dots are visible on the display, 1001 dots of trace data are captured internally and can be transferred to a PC via USB device interface.)
Resolution bandwidth
(6 dB for 2651 @ 9 kHz, 120 kHz) Range 3 kHz to 3 MHz (1-3 sequence) and AUTO (2651: 3 kHz, 9 kHz, 30 kHz, 120 kHz, 300 kHz, 1 MHz, 3 MHz)
Accuracy ±20%
Unit 1:12 (typical, 3dB:60dB)
Video Bandwidth 100Hz to 1MHz (1-3 Step), Auto
SSB phase noise @ 100kHz offest -90Bc/Hz (typical)
RBW 3kHz
VBW 100Hz
Sweep Time 1 s
Spurious Response less than -60 dBc
Harmonics less than -40dBx @ 100MHz to 8.5 GHz
Amplitude Reference Level Range +10 to -60dBm (1dB step)
Accuracy within ±0.8dB ±1 Dot @ Center Freq 100MHz
RBW 3MHz
VBW 1MHz
ATT 0dB, 23 ± 5°C
Unit dBm, dBV, dBmV, dBµV, dBµV/m, dBµA/m
(dBµV/m and dBµA/m are used for certain measurement functions)
Average Noise Level
(-127 dBm (typical) CF 1 GHz
RBW 3 kHz,
VBW 100 Hz, Ref. level ≤- 40dBm ( preamp automatically ON)
Frequency Response within ±2.0 dB ± 1 dot @50 kHz to 100 MHz
within ±1.0 dB ± 1 dot @100 MHz to
max. frequency (3.3 GHz or 8.5 GHz)
Input Impedance 50Ω
Input VSWR < then 2.0
Input Attenuator Operating Range 0 to 25dB (1 dB step), coupled with reference Level
Switching Error within ± 0.6dB @ 100MHz
RBW Switching Error within ± 0.6dB
Display Resolution 381 dots/10 div
Display Scale Scale 10 dB/div, 5 dB/div, 2 dB/div
Accuracy ±(0.2 dB+1dot)/2 dB
±(0.4 dB+1dot)/5 dB
±(0.8 dB+1dot)/10 dB
±(1.8 dB+1dot)/83 dB
Input Damage Level +27dBM (CW average Power) 25VDC
Sweep time
Range (1-3 step) 10 ms to 30 s and AUTO frequency span 0 to 2 GHz
30 ms to 30 s and AUTO
frequency span full span
